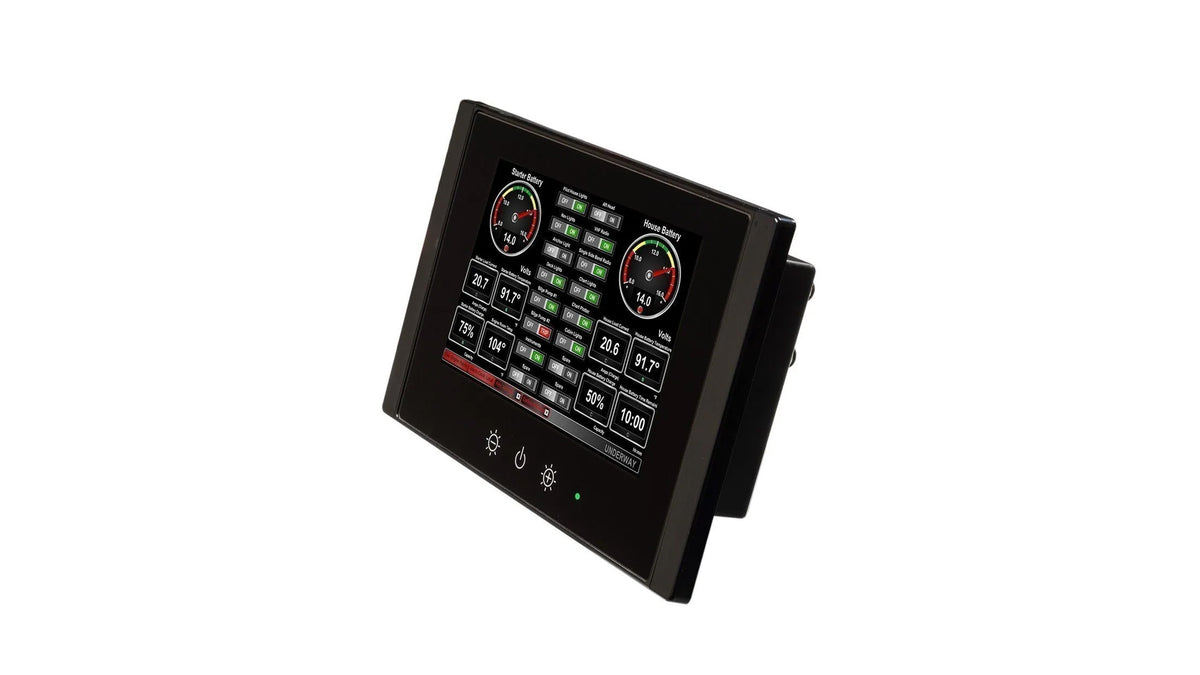

Maretron TSM810C 8" NMEA 2000 Touchscreen Vessel Monitor Display — TSM810C-01

The Maretron TSM810C (Part: TSM810C-01) is an 8" color touchscreen vessel monitoring display for NMEA 2000 networks. Shows real-time data from any N2K-connected sensor or instrument — engine gauges, tank levels, battery, bilge, generators, navigation, weather, and more — across configurable dashboard pages. The flagship Maretron display for large vessels with complex NMEA 2000 monitoring requirements.

Specifications

• Screen Size: 8" diagonal, color touchscreen LCD
• Interface: NMEA 2000 — reads all connected N2K data sources
• Dashboard Pages: Configurable — create custom gauge pages for any connected data
• Display Types: Gauges, bar graphs, numeric readouts, trend graphs, alarm history
• Alarms: Configurable on any parameter — high/low limits on any sensor
• Remote Control: Yes — pairs with Maretron DSM410 and N2K network
• Power: NMEA 2000 bus or external 12V DC
• Warranty: 3 years

TSM810C vs. DSM410: When to Use Each

The Maretron DSM410 (4.1" display) is the right choice for a secondary monitoring screen at a specific station — helm, nav table, engine room — where a compact display handles one or two focused data groups. The TSM810C is the right choice for a primary monitoring station where all vessel data needs to be accessible in one place, with larger screen real estate for multiple gauges and a touchscreen that works at the helm in offshore conditions. Many installations use both: TSM810C at the main helm for full vessel monitoring, DSM410 units at secondary stations for focused readouts.

Common Applications

• Primary NMEA 2000 vessel monitoring display at the helm or nav station
• Motor yacht engine room monitoring panel — all engine and systems data
• Catamaran dual-helm monitoring — displays all N2K sources from both engines
• Charter or commercial vessel with complex systems monitoring requirements

Shipping and taxes calculated at checkout. NMEA 2000 network and appropriate sensors required.
