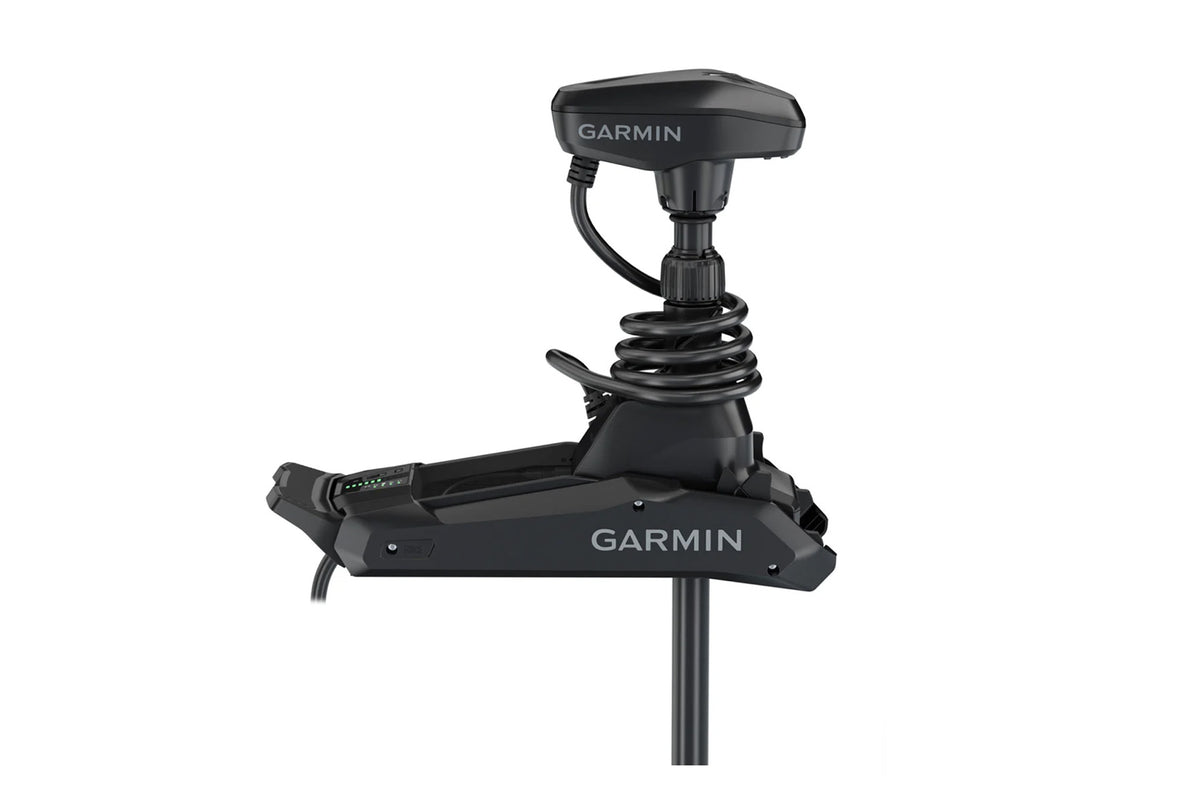

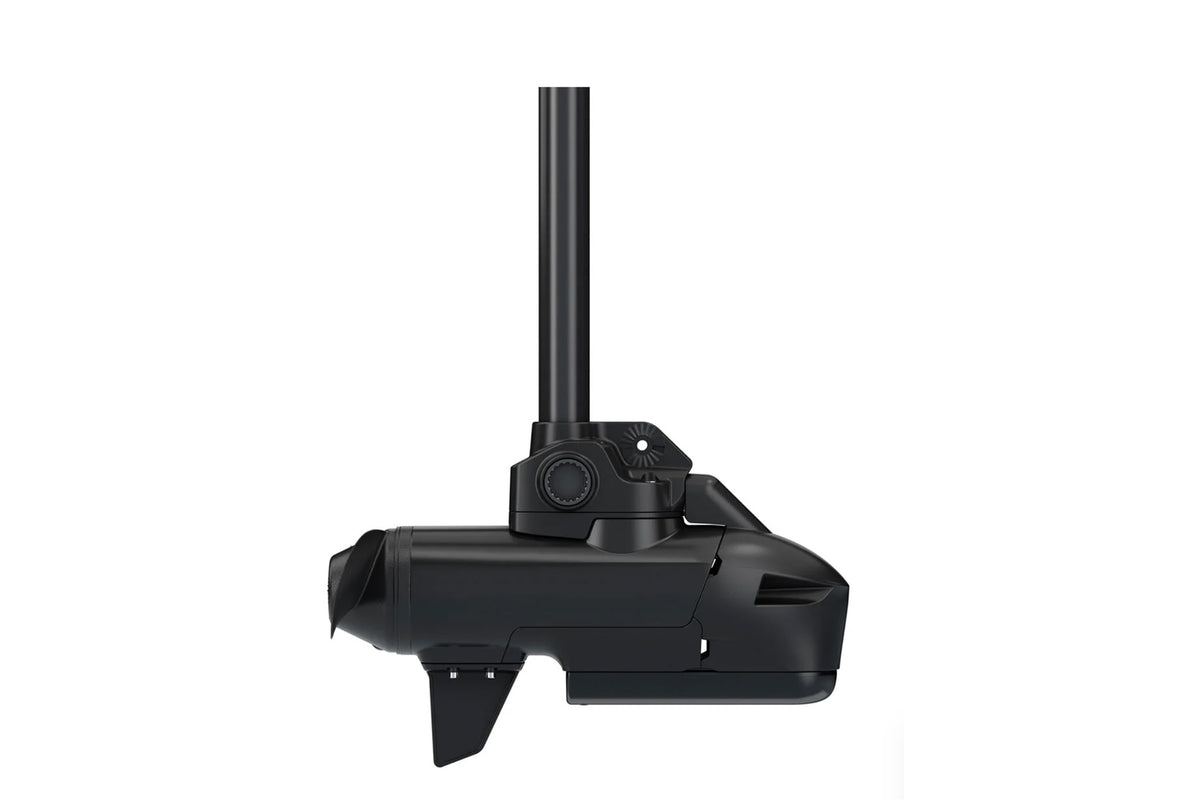

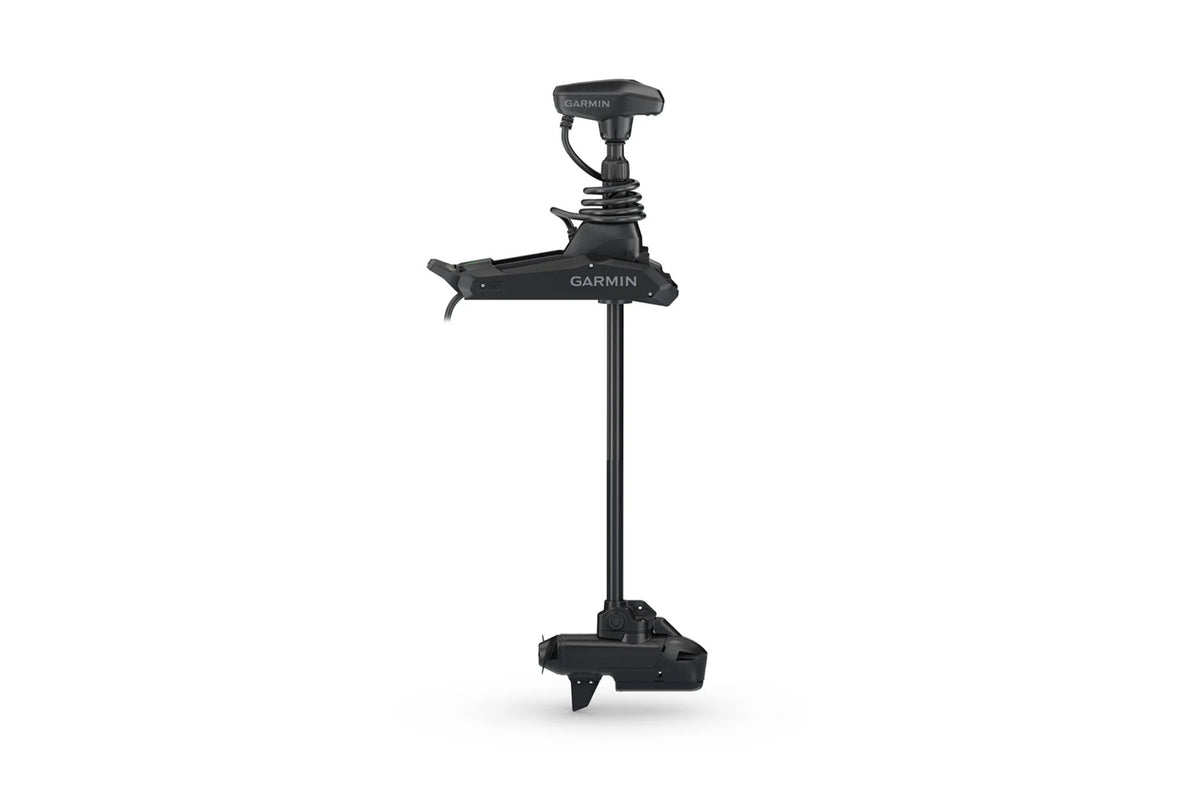

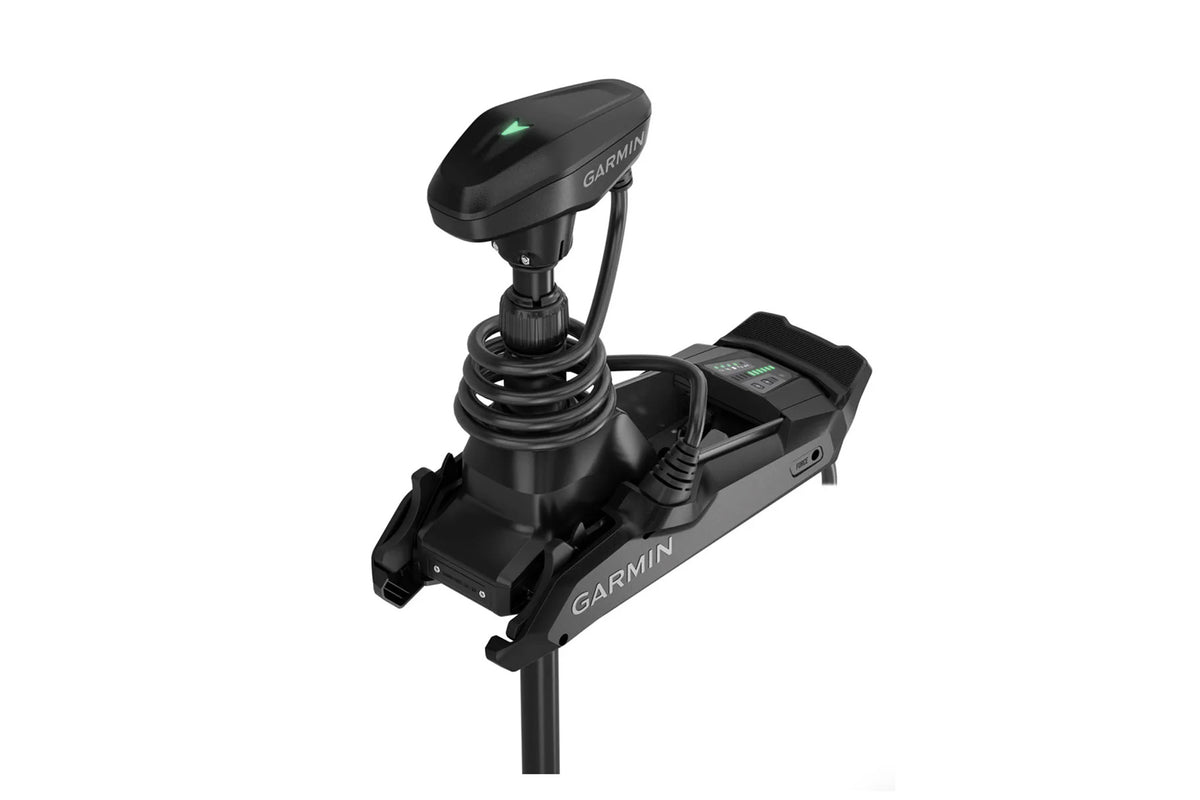

Garmin Force Kraken 63" Black Trolling Motor with GT56UHD
Shipping at checkout · Manufacturer warranty per product documentation
Installment options may be available at checkout through Shop Pay.
- Shipping
- Warranty
- Returns
Garmin Force Kraken 63" Black Trolling Motor with GT56UHD
Garmin's most powerful brushless trolling motor. 63" shaft, 24V/36V, 80–100 lb thrust, included GT56UHD-TR transducer (HW CHIRP + ClearVü/SideVü 455/800/1000 kHz), anchor lock, and full chartplotter integration
The Garmin Force Kraken 63" Black Trolling Motor with GT56UHD is part of the Garmin Force Kraken lineup, built for demanding marine environments. 24V/36V brushless motor — up to 100 lb thrust with near-silent operation. GT56UHD-TR transducer included — High-wide CHIRP traditional sonar plus UHD ClearVü and SideVü at 455/800/1000 kHz. Networking: Garmin Marine Network, NMEA 2000.
Ideal For
Ideal for recreational and commercial vessel owners who need dependable marine equipment with clear specifications and manufacturer-backed support.
At a Glance
- Shaft Length: 63"
- Thrust: 80–100 lbs
- Voltage: 24V or 36V
- Transducer: GT56UHD-TR (Force Kraken bow mount; not thru-hull)
- Traditional Sonar: High-wide CHIRP (HW CHIRP, 150–240 kHz)
- ClearVü: 455 / 800 / 1000 kHz (UHD)
- SideVü: 455 / 800 / 1000 kHz (UHD)
- Mount: Pivot-style bow mount
- Networking: Garmin Marine Network, NMEA 2000
- Warranty: 3 Years
Compatibility & Integration
- Networking: Garmin Marine Network, NMEA 2000
Complete Specifications
- Shaft Length: 63"
- Thrust: 80–100 lbs
- Voltage: 24V or 36V
- Transducer: GT56UHD-TR (Force Kraken bow mount; not thru-hull)
- Traditional Sonar: High-wide CHIRP (HW CHIRP, 150–240 kHz)
- ClearVü: 455 / 800 / 1000 kHz (UHD)
- SideVü: 455 / 800 / 1000 kHz (UHD)
- Mount: Pivot-style bow mount
- Networking: Garmin Marine Network, NMEA 2000
- Warranty: 3 Years
- Color: Black (freshwater focused)
- Sonar: Traditional HW CHIRP; ClearVü/SideVü 455/800/1000 kHz
Shipping and tax are shown at checkout. Manufacturer warranty terms are included with the product. Contact us with vessel details before ordering.
Difficulty: Intermediate
Estimated time: 2–8 hours
Professional installation: Recommended for most marine deployments.
Best Practices
- Verify mounting clearance and cable routing before cutting or drilling.
- Use marine-grade wiring, connectors, and corrosion protection.
- Follow manufacturer power, networking, and grounding specifications.
- Test all functions at the dock before offshore deployment.
